Description

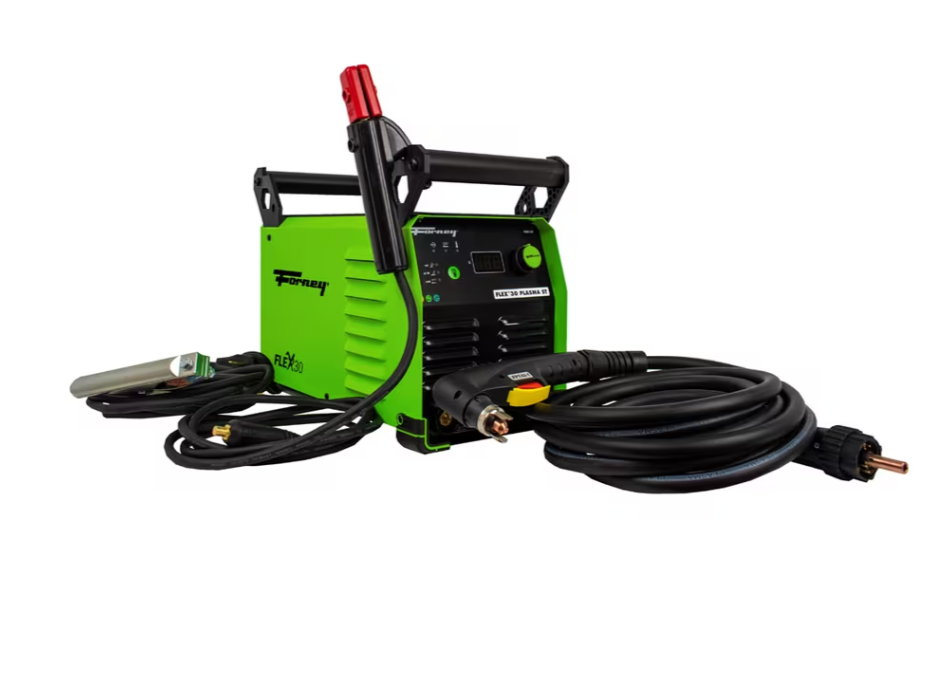

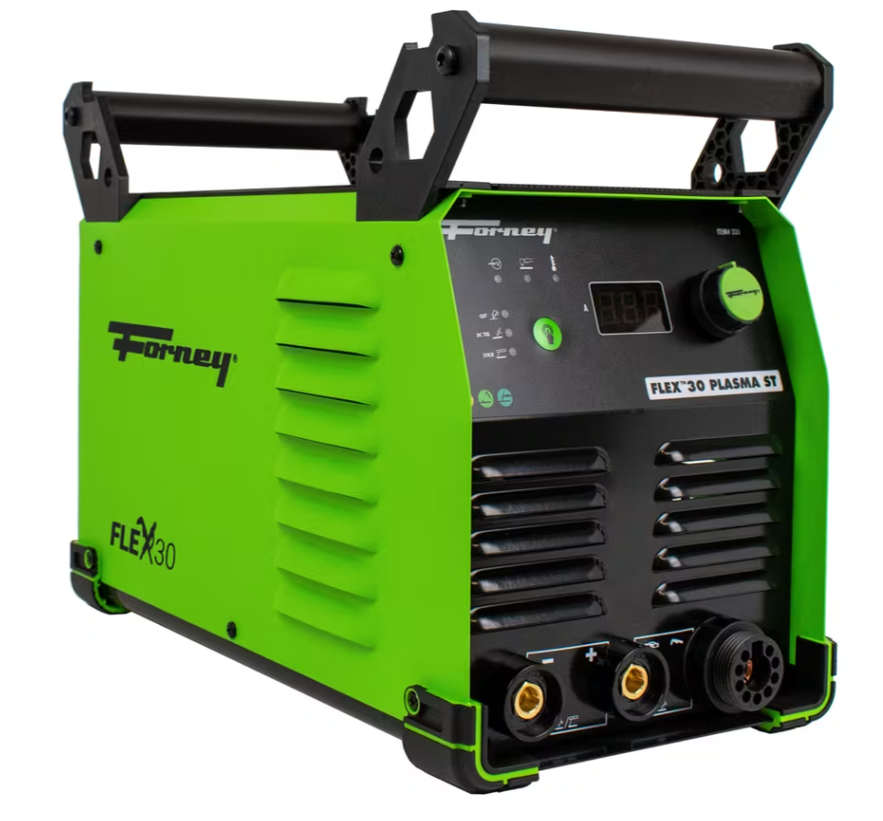

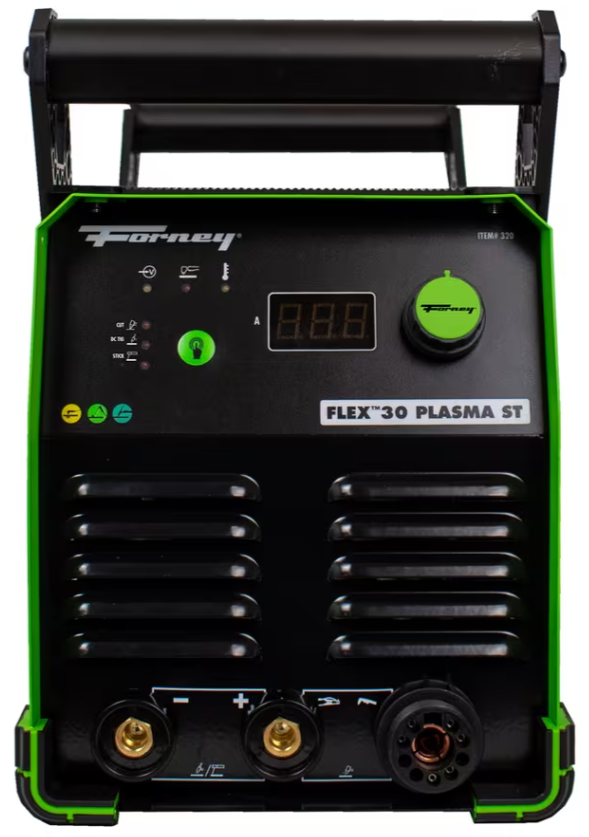

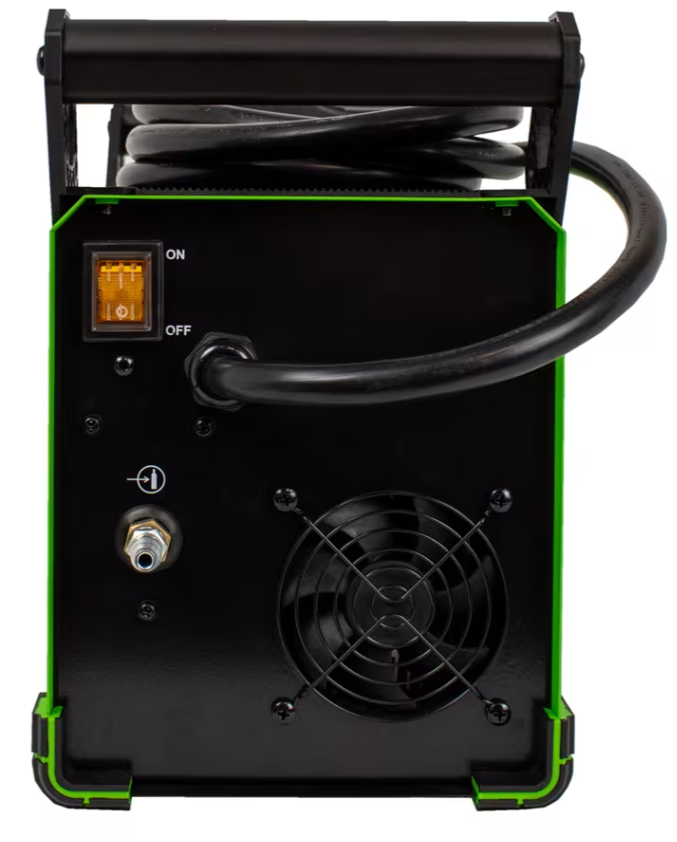

Forney FLEX 30 Plasma ST

The Forney Flex 30™ Plasma ST is an all-in-one welding and cutting machine! It’s portable, easy to use, generator-friendly, and features innovative inverter technology – making this one of the most efficient machines in the market. This powerful, dual-voltage plasma cutter and stick/TIG welder also allows you to work wherever 120V and 240V power is available.

Cleanly cut from thin sheet metal to 3/8” plate (sever cut up to 5/8”). Ideal for many applications including do-it-yourself (DIY) projects, farm & ranch, maintenance and repair, and light industrial work.

PROCESSES

· Stick Welding (SMAW)

· TIG Welding (GTAW) – Requires a TIG torch with a gas valve in the handle (sold separately)

· Plasma Cutting

FOR USE ON

· Mild Steel | Sheet Metal

· Stainless Steel

· Aluminum

· Copper

SPECIFICATIONS

· Lift Arc TIG capable. Requires TIG Torch (Forney ITEM# 85659).

· Output Power (Welding): 120V @ 85A | 240V @ 160A (DC output only)

· Output Power (Cutting): 120V @ 20A | 240V @ 30A

· Input Voltage: 120V/240V

· Electrode Diameter: Up to 5/32”

· Plate Thickness: Up to 3/8”

· Cutting Capacity: 3/8” clean cut | 5/8” sever cut

· Duty Cycle (TIG): 120V: 30% @ 85A | 240V: 30% @ 160A

· Duty Cycle (Stick): 120V: 30% @ 80A @ 30% | 240V: 25% @ 160A

· Duty Cycle (Plasma): 120V: 35% @ 20A | 240V: 60% @ 30A

· Amperage Range (TIG): 120V: 10A-85A | 240V: 10A-160A

· Amperage Range (Stick): 120V: 10A-80A | 240V: 10A-160A

· Amperage Range (Plasma): 120V: 10A-20A | 240V: 10A-30A

· Recommended Air Supply Flow Rate: 4.5 CFM

· Certification: CSA listed

· Phase: Single

· Warranty: 3-year (power source), 1-year (torch)

FEATURES

· Dual-Voltage: Provides the operator flexibility for where their machine can be used.

· All-In-One Metalworking Solution: Cut and weld up to 3/8” thick material with one small, powerful machine.

· Built Tough: Constructed with an all-metal case, built tough to take on the day to day.

· Digital Display: For greater accuracy and control.

INCLUDES

· Forney Flex 30™ Plasma ST machine

· Additional set of consumables

· 6ft power cable

· 8ft stick electrode holder

· 8ft ground cable and clamp

· 15ft removable plasma torch with Euro Connect

· 120V-240V adapter cord

UNIT DIMENSIONS (OUT OF THE BOX)

· Unit Weight: 19.65 lbs. (8,62 Kg)

· Unit Dimensions: 16.68” (423 mm) x 8.25” (210 mm) x 11.94” (303 mm)

RECOMMENDED FORNEY ACCESSORIES AND CONSUMABLES

· ITEM# 85659 - Air Cooled, 150A 17FV Series (Flex and Valve) TIG Torch, 12.5ft with Dinse Adapter

· ITEM# 85364 - Argon/CO2 Flow Meter, CGA580 Inlet Connection

· ITEM# 85669 - Electrode Holder with Cable, 15ft, 150A (Replacement)

· ITEM# 85667 - Ground Cable Assembly, 150A (Replacement)

· ITEM# 93097 - Deluxe Electrode Storage Container

· ITEM# 70600 - Chipping Hammer, Spring Handle

· ITEM# 85678 - Plasma Cutting Tip, 0.8 mm, 30A

· ITEM# 85755 - Plasma Cutting Electrode for Forney Plasma Cutter Machines

· ITEM# 85680 - Plasma Torch (Replacement)

· ITEM# 85393 - Air Diffuser Ring (Swirl Ring)

· ITEM# 85681 - Shield Cup

· ITEM# 555 - 4.5 CFM Air Compressor
